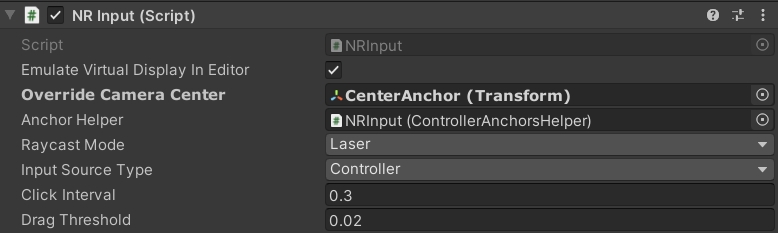

To enable input support for XREAL device (Controller and Hand tracking), simply drag NRInput prefab into your scene hierarchy. It is used to query virtual or raw controller state, such as buttons, triggers, and capacitive touch data.
Raycast Mode: Choose between Laser / Gaze interaction. Laser is the default raycasting mode most apps will be based on. In this mode, the ray will start from the center of the controller.
Input Source Type: Choose between Controller / Hands. Hands will enable hand tracking capability.
You may leave other fields unchanged.

Raycasters in NRInput

The raycaster class inherits from Unity's BaseRaycaster class. A chosen raycaster's farthest raycasting distance can be modified directly from the Inspector window. You can also define which objects are interactable by changing the parameter of their Mask.

Handle Controller State Change

The primary usage of NRInput is to access controller button state through Get(), GetDown(), and GetUp().
  • Get() queries the current state of a controller.
  • GetDown() queries if a controller was pressed this frame.
  • GetUp() queries if a controller was released this frame.
Sample Usages:
//returns true if a Trigger button is currently being pressed
//returns true if a Trigger button was pressed down this frame
//returns true if a Trigger button was released this frame
You could also add listeners to controller buttons:
Sample Usages:
//Add button down listeners for right controller's trigger button
NRInput.AddDownListener(ControllerHandEnum.Right, ControllerButton.TRIGGER, () => { Debug.Log("do sth"); });
//Add pressing listeners for right controller's trigger button
NRInput.AddPressingListener(ControllerHandEnum.Right, ControllerButton.TRIGGER, () => { Debug.Log("do sth"); });
//Add button up listeners for right controller's trigger button
NRInput.AddUpListener(ControllerHandEnum.Right, ControllerButton.TRIGGER, () => { Debug.Log("do sth"); })

Other Controller Events:

/// Event invoked whenever a controller device is connected.
public static Action OnControllerConnected;
/// Event invoked whenever a controller device is disconnected.
public static Action OnControllerDisconnected;
/// Event invoked before controller devices are going to recenter. <
public static Action OnBeforeControllerRecenter;
/// Event invoked whenever controller devices are recentering.
internal static Action OnControllerRecentering;
/// Event invoked whenever controller devices are recentered.
public static Action OnControllerRecentered;
/// Event invoked whenever controller devices states are updated.
public static Action OnControllerStatesUpdated;

Change Controller Behaviour

//Set interaction method to Gaze
NRInput.RaycastMode = RaycastModeEnum.Gaze;
//Hide Reticle Visual
NRInput.ReticleVisualActive = false;
//Hide Laser Visual
NRInput.LaserVisualActive = false;
//Hide Controller Model
NRInput.ControllerVisualActive = false;
//Disable Controller Vibrationn
NRInput.HapticVibrationEnabled = false;
//Trigger Haptic Vabration of 0.1s
//Recenter controller Raycast

Getting Controller Data

Sample Usages:
//Getting available features for current controller, such as
//magenetometer, remaining battery, haptics, etc.
//Get controller's position. For current XREAL device, this
//will always return Vector3.Zero
//Get controller's rotation
//Get controller type: Phone controller or computing unit controller
ControllerType controllerType = NRInput.GetControllerType();
//Whether the controller's touch pad is being touched
//Getting a Vector2 touch value. Vector2.Zero if not touched
//Get controller's gyroscope data
//Get controller's accelerometer data
//Get controller's magnetometer data
//Get controller's remaining battery
//Getting the dominant hand
ControllerHandEnum domainHand = NRInput.DomainHand;
//You could pass in a dominant hand for most of the functions above
//Whether the feature is supported by controller

Get Frequently Used Anchors

The NRInput provides an easy way to get frequently used root node for gaze and laser quickly.
Sample Usage:
//Obtain the root of gaze
var gazeAnchor = NRInput.AnchorsHelper.GetAnchor(ControllerAnchorEnum.GazePoseTrackerAnchor);
//Obtain the root of right laser
var rightLaserAnchor = NRInput.AnchorsHelper.GetAnchor(ControllerAnchorEnum.RightLaserAnchor);
//Obtain the root of right model
var rightModelAnchor = NRInput.AnchorsHelper.GetAnchor(ControllerAnchorEnum.RightModelAnchor);

Interact with GameObject

Please inspect CubeInteractiveTest.cs which handles Unity events when interacting with gameObject this script attached to. Be aware that the gameObject must has a Collider component in order to receive the event. For a full list of supported Unity Event, please refer to: https://docs.unity3d.com/Packages/[email protected]/manual/SupportedEvents.html
public class CubeInteractiveTest : MonoBehaviour, IPointerClickHandler, IPointerEnterHandler, IPointerExitHandler, IDragHandler
private MeshRenderer m_MeshRender;
void Awake()
m_MeshRender = transform.GetComponent<MeshRenderer>();
//when pointer clicks, set the cube color to random color
public void OnPointerClick(PointerEventData eventData)
m_MeshRender.material.color = new Color(Random.Range(0f, 1f), Random.Range(0f, 1f), Random.Range(0f, 1f));
//when pointer hover, set the cube color to green
public void OnPointerEnter(PointerEventData eventData)
m_MeshRender.material.color = Color.green;
//when pointer exit hover, set the cube color to white
public void OnPointerExit(PointerEventData eventData)
m_MeshRender.material.color = Color.white;

Interact with Unity UI

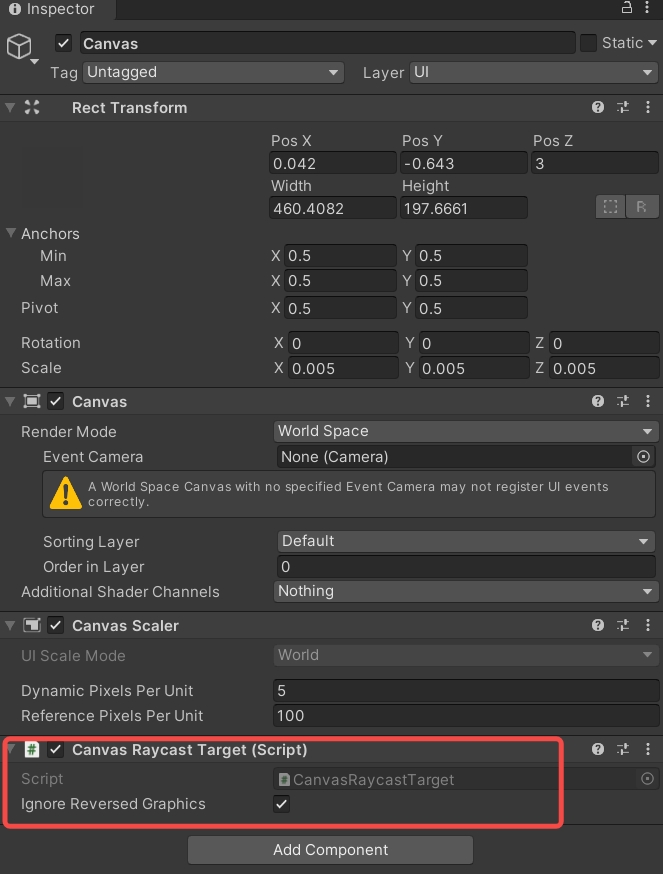

Integration with Unity's EventSystem supports user interaction with UI System. Please be aware in order for the Unity UI to respond to raycast and receive unity events, you must remove the default Graphic Raycaster component and attach Canvas Raycast Target component on Canvas.

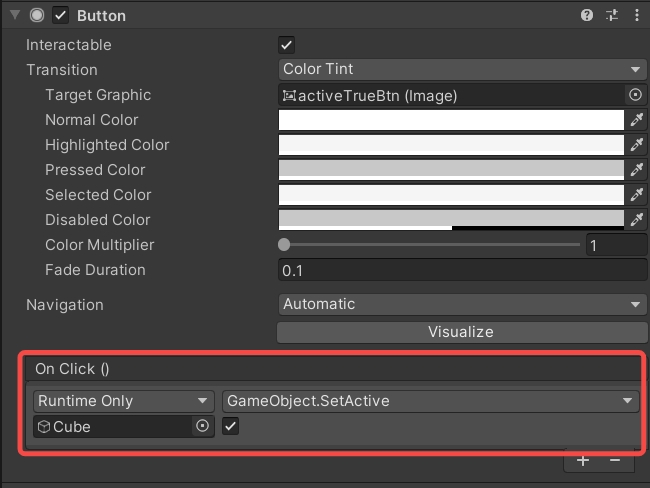

In this way, you may add event callbacks on Unity UI elements such as Button, Image, Toggle, Slider, etc. For example, On Click() on button:
